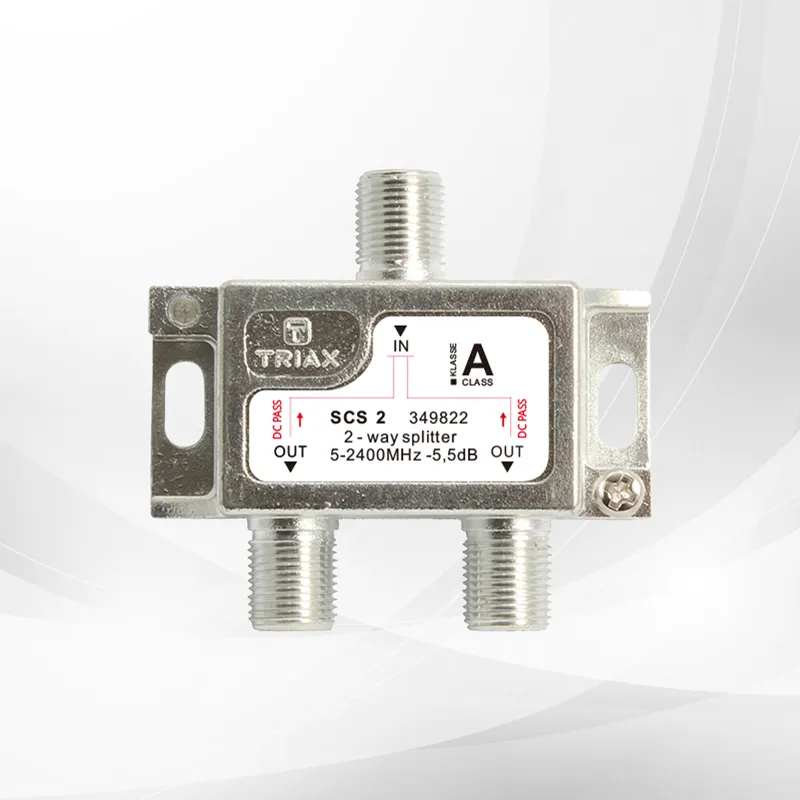

2 Way Splitter 5–2400 MHz – Through Power Outputs to Input

Product Number: 349822

The TRIAX 2 Way Splitter is a high-performance indoor RF splitter designed for SAT-IF, SMATV, and MATV distribution networks. Supporting a wide frequency range from 5 MHz to 2400 MHz, it is ideal for distributing DVB-S/S2 satellite signals, digital terrestrial television (DTT), DAB radio, and other RF services.

Featuring DC/AC power pass-through from all outputs to the input, the splitter allows remote powering of LNBs and active distribution equipment. Its robust zinc die-cast housing with tinned copper coating and soldered back plates provides exceptional shielding performance, ensuring reliable signal transmission with minimal interference.

Key Features

• 2-way RF splitter for satellite and terrestrial signal distribution
• Wide frequency range: 5–2400 MHz
• Compatible with DVB-S, DVB-S2, DTT, COFDM, and DAB signals
• DC/AC power pass-through from all outputs to the input
• Maximum power pass-through: 24V / 0.5A
• Directionally coupled via diodes for equipment protection
