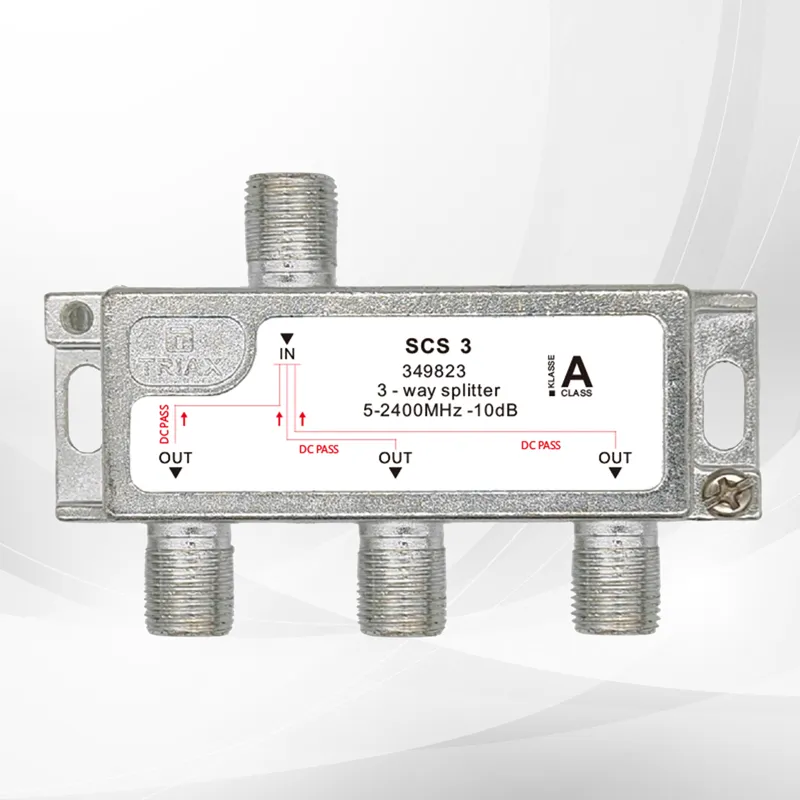

3 Way Splitter 5–2400 MHz – Through Power Outputs to Input

Product Number: 349823

The TRIAX 3 Way Splitter is a professional-grade indoor RF splitter designed for SAT-IF, SMATV, and MATV distribution systems. Supporting a wide frequency range of 5 MHz to 2400 MHz, it efficiently distributes satellite and terrestrial signals while maintaining excellent signal quality and system reliability.

Part of the TRIAX SILVER Series, this splitter features DC/AC power pass-through from all output ports to the input, allowing remote powering of LNBs, multiswitches, and other active devices. Its premium zinc die-cast housing with tinned copper coating and soldered back plates delivers outstanding shielding performance of up to 110 dB, minimizing signal interference and leakage.

Key Features

• 3-way RF splitter for satellite and terrestrial signal distribution
• Wide frequency range: 5–2400 MHz
• Compatible with DVB-S, DVB-S2, DTT, COFDM, and DAB signals
• DC/AC power pass-through from all outputs to the input
• Maximum pass-through power: 24V / 0.5A
• Directional power coupling via integrated diodes
