4 Way Splitter 5–2400 MHz – Through Power Outputs to Input

Product Number: 349824

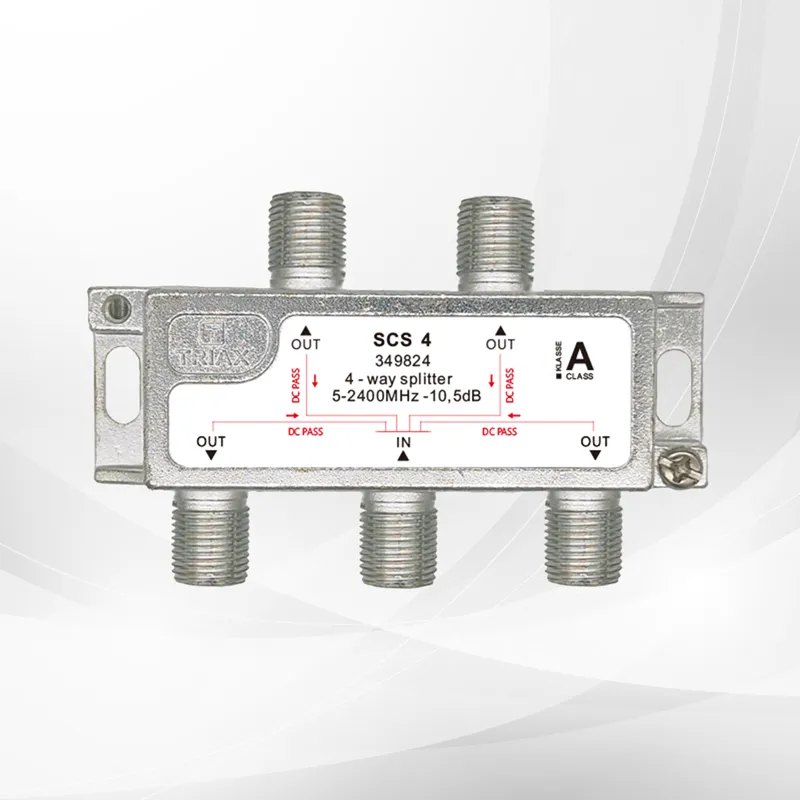

The TRIAX 4 Way Splitter is a professional indoor RF signal distribution solution designed for SAT-IF, SMATV, and MATV applications. Operating across a wide frequency range of 5 MHz to 2400 MHz, it supports the distribution of satellite, terrestrial TV, and radio signals with excellent performance and reliability.

Part of the TRIAX SILVER Series, this splitter features DC/AC pass-through from all output ports to the input, enabling remote powering of LNBs, multiswitches, and other active network devices. Its robust zinc die-cast housing with a tinned copper coating and soldered back plates provides exceptional shielding of up to 110 dB, ensuring maximum protection against interference and signal leakage.

Key Features

• 4-way RF splitter for satellite and terrestrial signal distribution
• Wide frequency range: 5–2400 MHz
• Suitable for DVB-S, DVB-S2, DTT, COFDM, and DAB applications
• DC/AC power pass-through from all outputs to the input
• Maximum pass-through power: 24V / 0.5A
• Directional power coupling via integrated diodes
