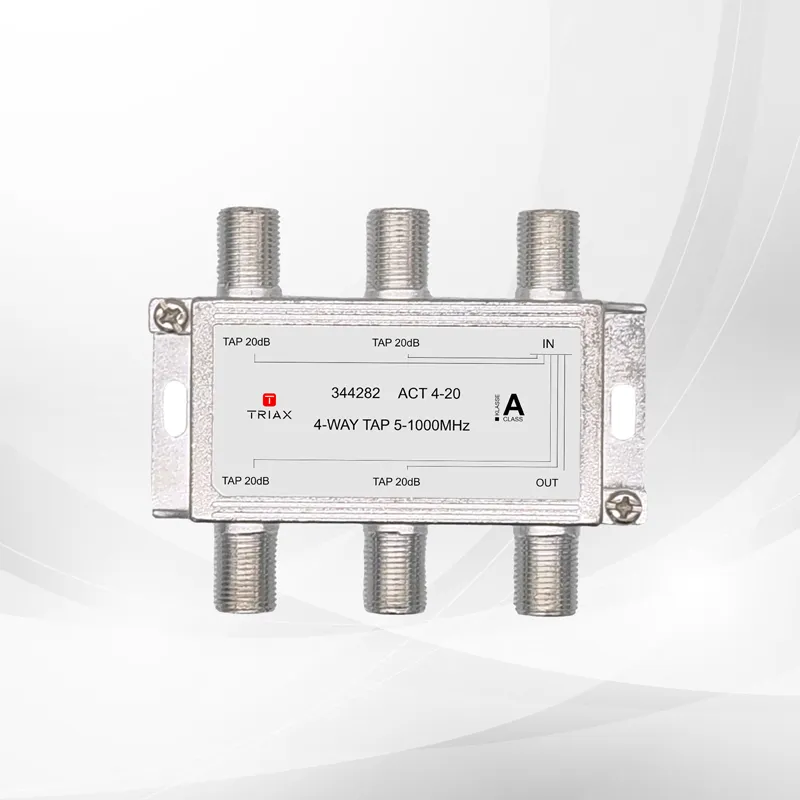

ACT 4-20 Tap Splitter

Product Number: 344282

The TRIAX ACT 4-20 is a premium Tap splitter designed for efficient signal distribution in CATV, SMATV, and MATV coaxial networks. Suitable for modern digital broadcast systems, it supports DVB-C (QAM), DTT (COFDM), and DAB signals while maintaining excellent signal quality. Featuring a robust die-cast housing with a tinned copper coating and soldered back plates, the ACT 4-20 provides exceptional shielding performance and long-term reliability.

Key Features

• Wide Frequency Range: Operates across 5 MHz to 1.0 GHz for compatibility with a variety of RF distribution applications.
• High Shielding Performance: Provides 110 dB shielding to minimise interference and ensure stable signal transmission.
• AC/DC Blocked Ports: All ports are AC/DC blocked at the inner conductor for enhanced equipment protection.
• Grade 2 Return Loss: Delivers return loss greater than 18 dB (Grade 2) for improved signal integrity and reduced reflections.
• Digital Broadcast Compatible: Supports DVB-C (QAM), DTT (COFDM), and DAB signal distribution networks.
• Durable Die-Cast Construction: Features a tinned copper-coated housing for superior durability and corrosion resistance.
