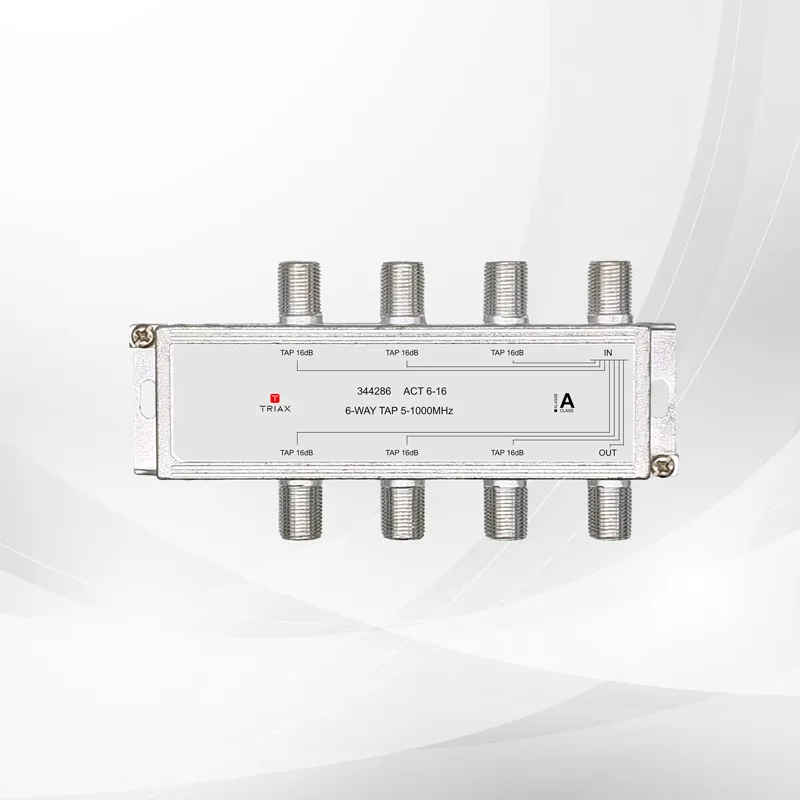

ACT 6-16 Tap Splitter

Product Number: 344286

The TRIAX ACT 6-16 is a high-performance Tap splitter designed for reliable signal distribution in CATV, SMATV, and MATV coaxial networks. Engineered for digital broadcast applications, it supports DVB-C (QAM), DTT (COFDM), and DAB signals while ensuring consistent signal quality across installations. Its rugged die-cast housing with a tinned copper coating and soldered back plates delivers excellent shielding and dependable long-term performance.

Key Features

• Wide Frequency Range: Supports frequencies from 5 MHz to 1.0 GHz for compatibility with modern RF distribution systems.
• High Shielding Performance: Provides 110 dB shielding to minimise interference and maintain signal integrity.
• AC/DC Blocked Ports: All ports are AC/DC blocked at the inner conductor for enhanced equipment protection and network safety.
• Grade 2 Return Loss: Features return loss greater than 18 dB (Grade 2) for reduced signal reflections and improved performance.
• Digital Broadcast Compatible: Suitable for DVB-C (QAM), DTT (COFDM), and DAB signal distribution applications.
• Durable Die-Cast Housing: Constructed with a tinned copper-coated enclosure for long-lasting durability and corrosion resistance.
