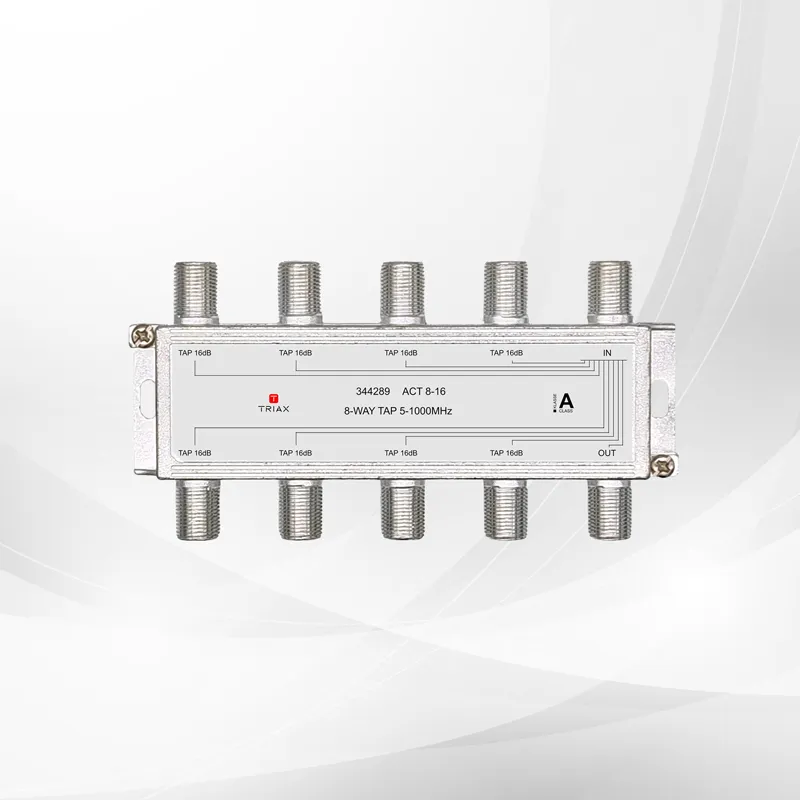

ACT 8-16 Tap Splitter

Product Number: 344289

The TRIAX ACT 8-16 is a professional-grade Tap splitter designed for efficient signal distribution in CATV, SMATV, and MATV coaxial networks. Supporting DVB-C (QAM), DTT (COFDM), and DAB digital broadcast signals, it ensures reliable signal delivery and excellent network performance. Its robust die-cast housing with a tinned copper coating and soldered back plates provides superior shielding and long-term durability for demanding installations.

Key Features

• Wide Frequency Range: Operates across 5 MHz to 1.0 GHz for compatibility with a wide range of RF distribution systems.
• High Shielding Performance: Delivers 110 dB shielding to minimise signal interference and maintain transmission quality.
• AC/DC Blocked Ports: All ports are AC/DC blocked at the inner conductor for enhanced equipment protection and installation flexibility.
• Grade 2 Return Loss: Features return loss greater than 18 dB (Grade 2) for reduced signal reflections and improved network efficiency.
• Digital Broadcast Compatible: Supports DVB-C (QAM), DTT (COFDM), and DAB signal distribution applications.
• Durable Die-Cast Construction: Incorporates a tinned copper-coated housing for excellent durability and corrosion resistance.
