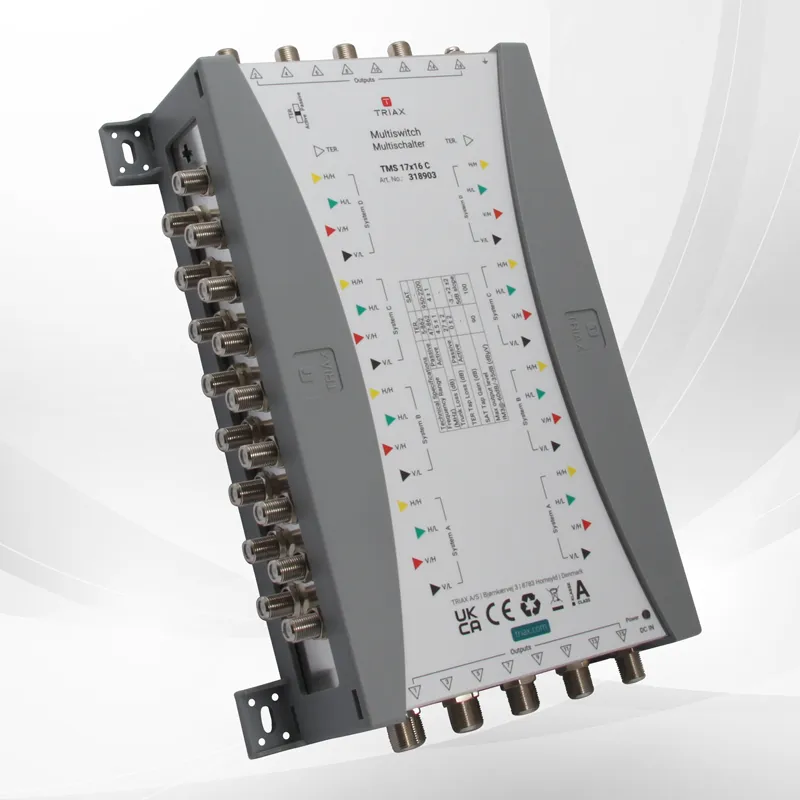

TMS 17×16 C Multiswitch, Cascade, 17 Inputs, 16 Subscriber Outputs

Product Number: 318903

The TMS 17×16 C is a cascade multiswitch designed for advanced SMATV and MATV distribution systems supporting up to 4 satellite positions. With 17 inputs, 17 trunk outputs, and 16 subscriber outputs, it is built for medium to large-scale installations requiring flexible and reliable signal distribution.

This model is engineered for stable long-term performance with low insertion loss, high isolation, RED compliance, ESD protection, and energy-efficient operation. Its cascade architecture allows system expansion across multiple levels without compromising signal quality.

Key Features

• 17 inputs / 16 subscriber outputs
• Supports up to 4 satellite positions
• Cascade design with 17 trunk outputs
• Low insertion loss and high isolation
• Active/Passive terrestrial switching
• Flexible power injection via trunk or PSU
