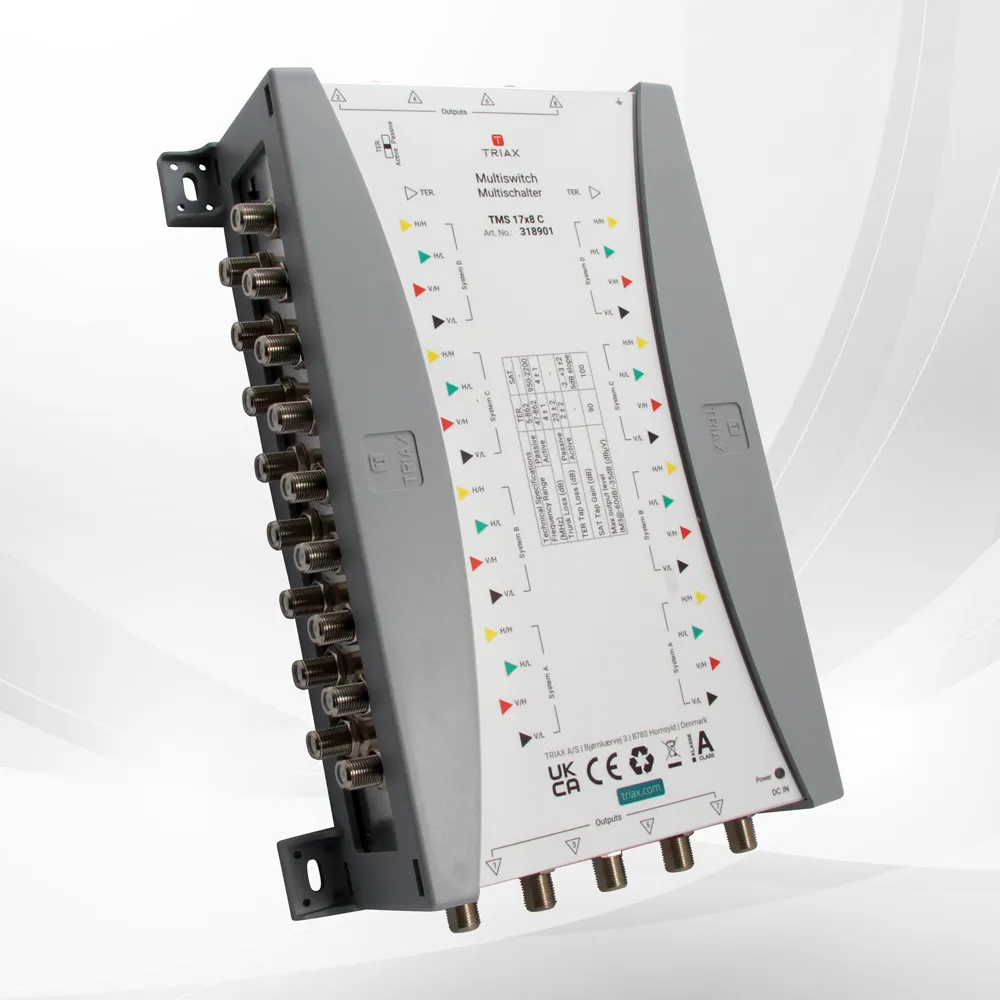

TMS 17×8 C Multiswitch, Cascade, 17 Inputs, 8 Subscriber Outputs

Product Number: 318901

The TRIAX TMS 17×8 C Multiswitch is a professional cascade multiswitch designed for distributing satellite and terrestrial TV signals from four satellite positions. Featuring 17 inputs, 17 trunk outputs, and 8 subscriber outputs, it provides a flexible and scalable solution for SMATV, MATV, and IRS installations in hotels, residential complexes, multi-dwelling units, and commercial properties.

Engineered with TRIAX’s commitment to reliability and innovation, the TMS 17×8 C delivers excellent signal quality through low insertion loss, high isolation, and energy-efficient operation. Its cascade architecture enables seamless expansion of distribution networks while maintaining optimal signal performance.

Key Features

• 17 inputs and 17 trunk outputs
• 8 subscriber outputs
• Supports 4 satellite positions and terrestrial TV signals
• Cascade design for expandable multiswitch systems
• Low insertion loss for efficient signal transmission
• High isolation between outputs
