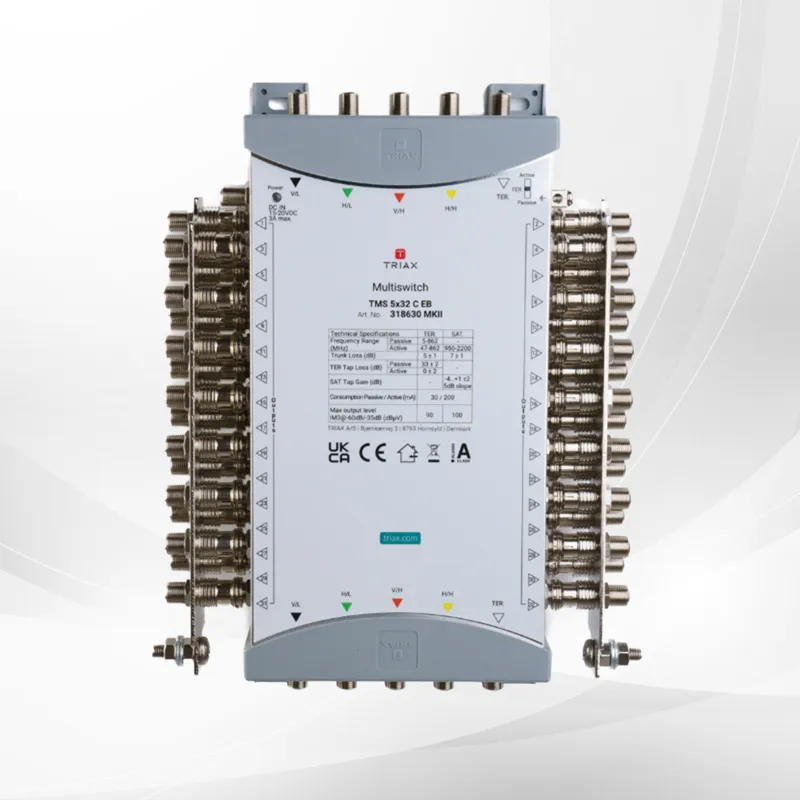

TMS 5×32 C EB Multiswitch, Cascade, 5 Inputs, 32 Subscriber Outputs

Product Number: 318630

The TRIAX TMS 5×32 C EB Multiswitch is a high-capacity cascade multiswitch designed for professional satellite and terrestrial TV signal distribution in large residential, hospitality, and commercial installations. Featuring 5 inputs, 5 trunk outputs, and 32 subscriber outputs, this multiswitch provides a scalable and reliable solution for extensive SMATV and MATV networks.

Engineered to TRIAX’s high standards of quality and innovation, the TMS 5×32 C EB offers excellent signal performance, low power consumption, and flexible installation options. Its compact design and installer-friendly features make it ideal for projects requiring efficient signal distribution and future system expansion.

Main Features

• 5 Inputs, 32 Subscriber Outputs: Distributes satellite and terrestrial TV signals to up to 32 subscriber connections.
• 5 Trunk Outputs: Supports cascade configurations for expanding large distribution systems.
• Cascade Multiswitch Design: Ideal for medium and large-scale SMATV and MATV installations.
• External Power Supply Support: Powered directly by a TMS PSU or via SAT trunk lines.
• Low Insertion Loss: Maintains strong and consistent signal quality throughout the network.
• High Isolation: Reduces signal interference between outputs for reliable reception.
