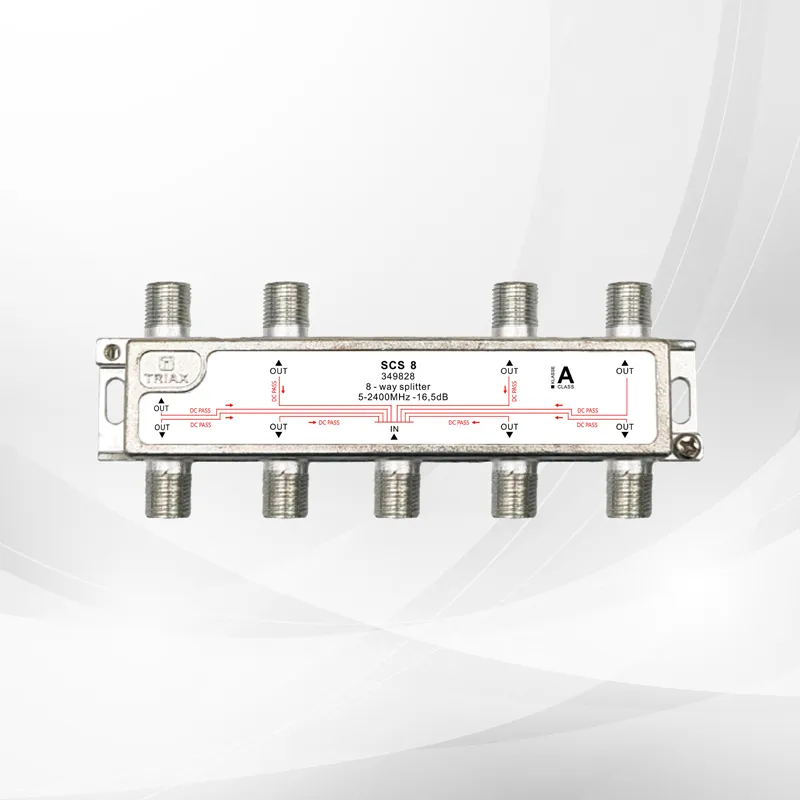

TRIAX 8 Way Splitter 5–2400 MHz – Through Power Outputs to Input

Product Number: 349828

The TRIAX 8 Way Splitter is a professional indoor RF distribution solution designed for SAT-IF, SMATV, MATV, and terrestrial TV networks. Operating across a wide frequency range of 5 MHz to 2400 MHz, it supports DVB-S, DVB-S2, DTT, COFDM, and DAB signal distribution with excellent performance and reliability.

Part of the renowned TRIAX SILVER Series, this splitter features DC/AC power pass-through from all output ports to the input, enabling remote powering of LNBs, multiswitches, and other active devices. Its premium zinc die-cast housing with tinned copper coating and soldered back plates provides exceptional 110 dB shielding, ensuring superior protection against signal interference and leakage.

Key Features

• 8-way RF splitter for satellite and terrestrial signal distribution
• Wide frequency range: 5–2400 MHz
• Compatible with DVB-S, DVB-S2, DTT, COFDM, and DAB applications
• DC/AC pass-through from all outputs to the input
• Maximum power pass-through: 24V / 0.5A
• Directional power coupling via integrated diodes
