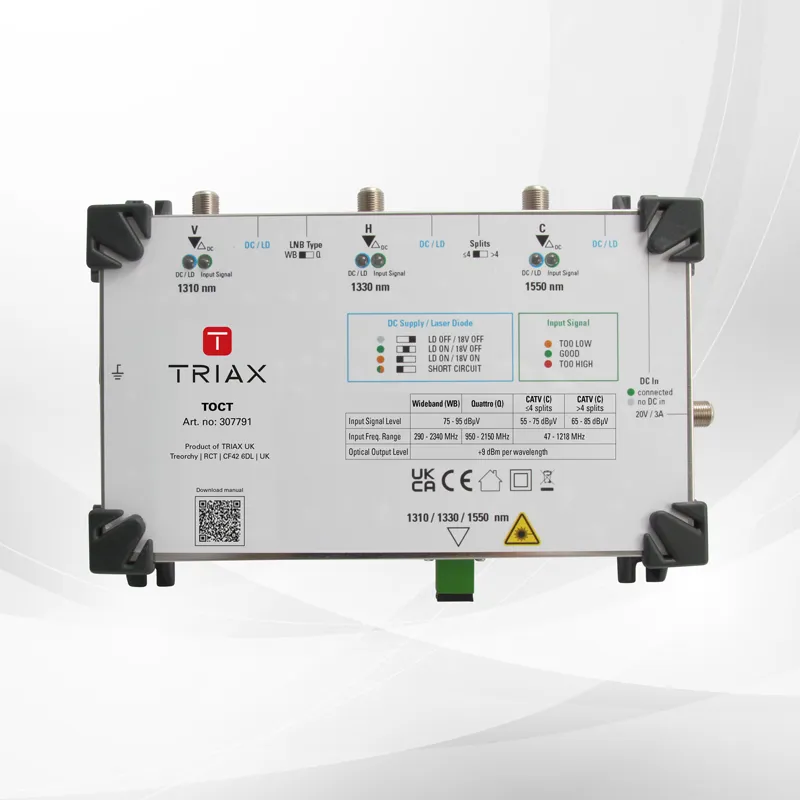

TRIAX TOCT Optical Combined Transmitter with AGC

Product Number: 307791

The TRIAX TOCT Optical Combined Transmitter with AGC is a high-performance headend unit within the TRIAX TOF (Optical Fibre) system, designed to distribute both satellite (SAT-IF) and terrestrial RF signals (DVB-T, DAB, FM, CATV) over a single fibre network. It provides a future-ready, scalable solution for large-scale TV distribution in hotels, hospitals, MDUs, and commercial installations.

Using advanced optical transmission technology, the TOCT converts RF signals into optical outputs and transmits them over a Passive Optical Network (PON) with extremely low signal loss. Built-in AGC (Automatic Gain Control) and ASC (Automatic Slope Control) ensure stable and balanced signal levels without manual tuning.

Key Features

• Optical Combined Transmitter for SAT + Terrestrial signals
• Supports satellite (SAT-IF), DVB-T, DAB, FM, and CATV
• Built-in AGC (Automatic Gain Control)
• Built-in ASC (Automatic Slope Control)
• Three optical transmitters (1310 nm / 1330 nm / 1550 nm)
• WDM combined optical output
