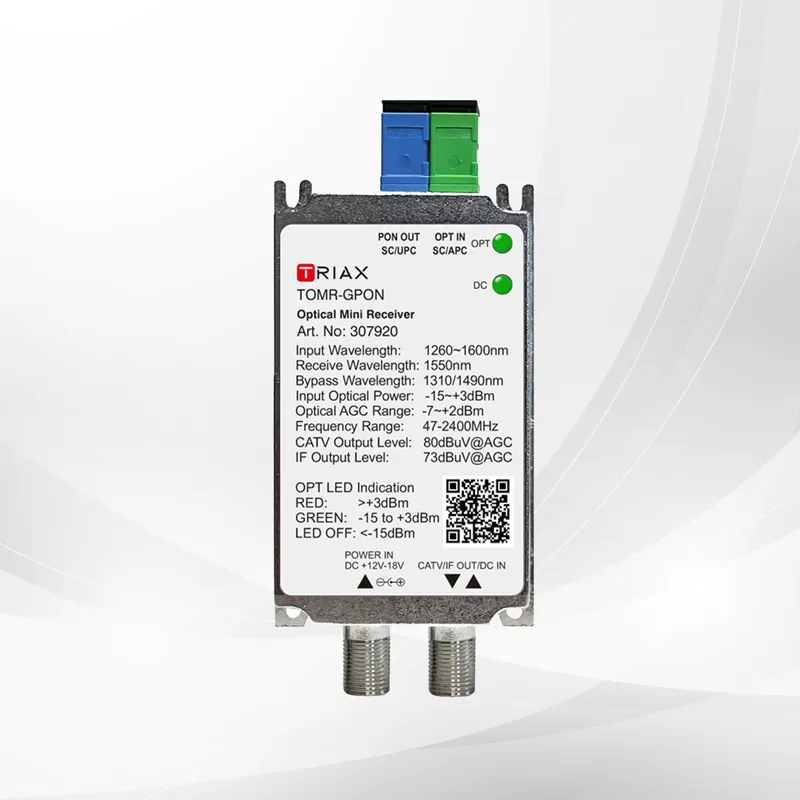

TRIAX TOMR-GPON Optical Mini Receiver

Product Number: 307920

The TRIAX TOMR-GPON Optical Mini Receiver is a compact and high-performance optical receiver designed for FTTH (Fibre to the Home) networks. It enables the distribution of CATV and SAT-IF signals over fibre optic infrastructure while supporting GPON networks through its integrated WDM optical bypass port.

With a wide operating frequency range of 47–2400 MHz, the TOMR-GPON delivers excellent signal quality, high linearity, and low noise performance for reliable television and satellite signal distribution. Its built-in AGC function automatically maintains stable output levels, ensuring consistent performance across varying optical input conditions.

Key Features

• CATV and SAT-IF Optical Mini Receiver
• Designed for FTTH (Fibre to the Home) networks
• Wide operating frequency range: 47–2400 MHz
• Built-in GPON WDM optical bypass port
• Supports 1310nm and 1490nm optical wavelengths
• Excellent linearity and flatness
